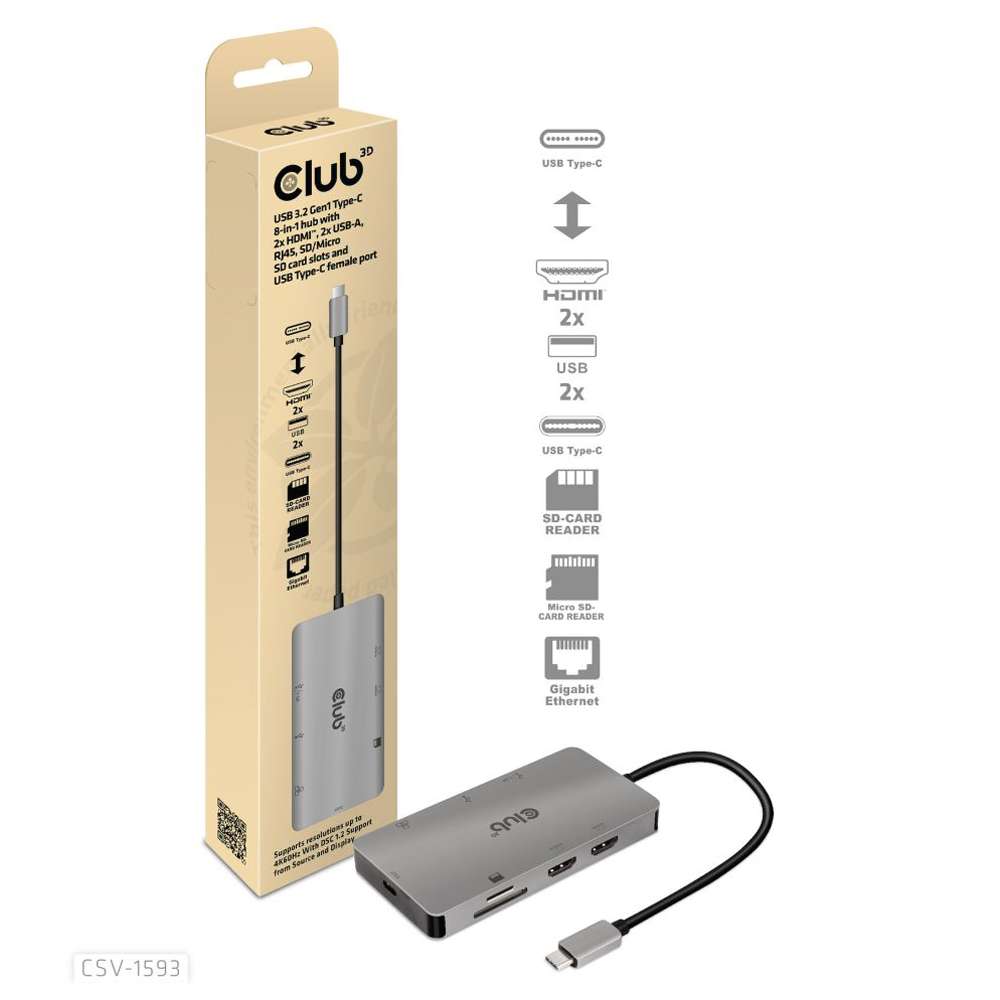

Club3D CSV1593 USB-C 3.2 Gen 1 8-in-1 Hub with 2X HDMI/2X USB/RJ45/SD/Micro SD Card Slots and USB-C Female Port Gray
- Upstream: USB 3.2 Gen1 Type-C Male(Connect to host)
- Support DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps
- (8.1Gbps per lane), downward compatible with DP1.2 Alt mode
- Support DSC
- Note: To get max bandwidth, the host should support DP1.4 Alt mode with DSC format.
- Downstream: HDMI™x2
- Support HDMI™ max 4K/60Hz, 4:4:4, 8bit with 18Gbps Bandwidth
- Support Dual max 4K/30Hz under MST mode (Windows™ System)
- Support Dual max 4K/60Hz under SST mode (Mac™ System ONLY)
- Support 8/10/12 bit color depth output
- Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/YCbCr420
- Support HDCP 2.2&HDCP1.4
- Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI™ is 4k/60Hz (dual 4K/30Hz); When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz (dual 1080P/60Hz) due to bandwidth limitation.
- USB3.2 Gen1 Type-A
- – 1x USB3.2 Type-A port supports BC 1.2 with max 7.5W(5V/1.5A) downstream charging, 1x USB Type-A share max 8W (5V/1.6A) downstream charging.
- – Max 5Gbps bandwidth per USB-A port
- SD/Micro SD
- – Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50((more…)
$119.99
The Club 3D CSV-1593 USB 3.2 Gen1 Type-C 8-in-1 hub with 2 HDMI™, 2 USB-A, RJ45, SD/Micro SD card slots and Type-C female port, providing an ideal solution for extending your USB3.2 Gen1 Type-C or Thunderbolt™3 host port (PC/Laptop/Mobile phone,etc.). Especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode support, enabling to output HDMI™ video with max 4k60Hz or dual max 4K30Hz under MST mode and simultanuously transfer USB 3.2Gen1 data with max 5Gbps. 2x USB Type-A ports allow you to connect 2 USB devices simultaneously. The SD/Micro SD ports allow to insert 2 card into the slots simultaneously for data transmission or for reading/writing information on the host. The RJ45 port allows the host to get access to Gigabit Ethernet. Besides, the USB 3.2 Gen1 Type-C female supports PD 3.0 with max. 100W PD Charging. It can work on all USB3.2 Gen1 Type-C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode). When working on Thunderbolt™3 host, this product transmits DP signal.
