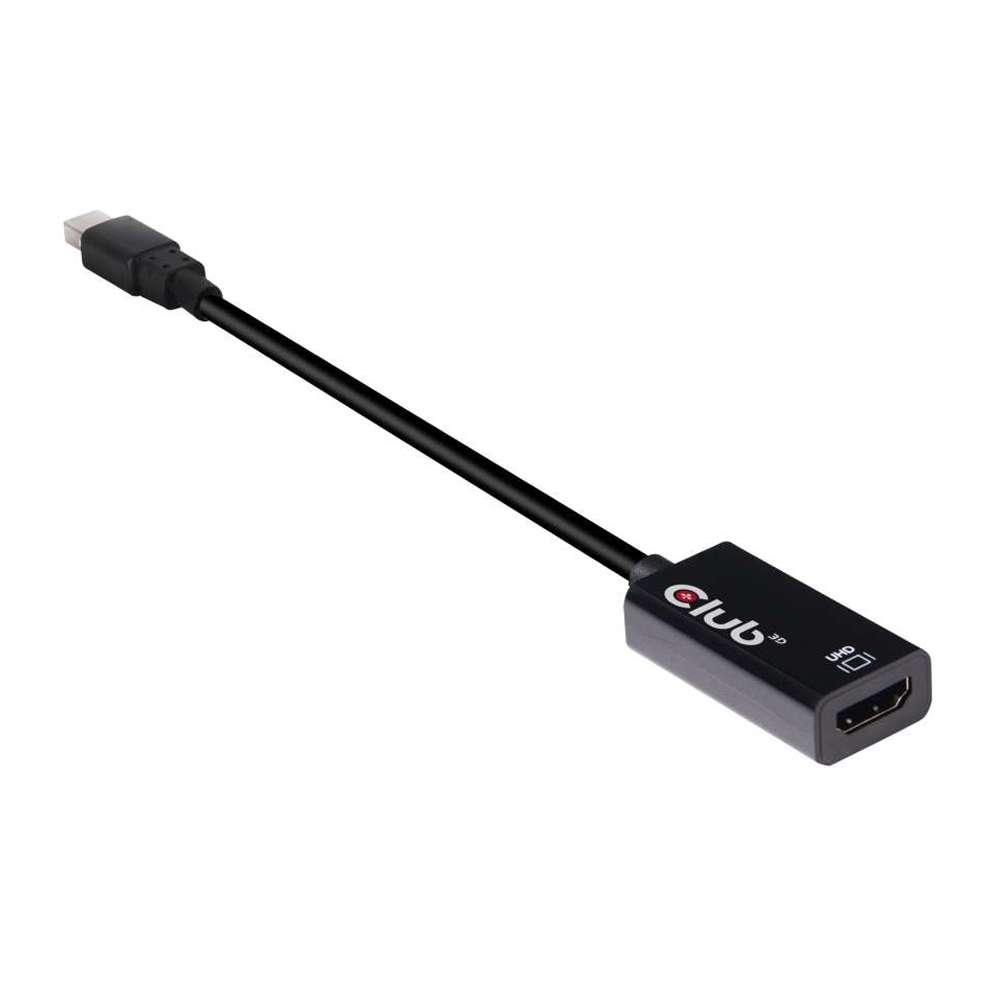

Club3D CAC1180 MiniDisplayPort 1.4 Male to HDMI 2.0 Female 4K 60HZ UHD/3D Active Adapter-HDR Support Black
- DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
- Video Stream Handling
- – Up to 600Mhz dual pixel path and 16bpc
- – RGB/YCbCr 4:2:2/4:2:0 pixel format
- – Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec)
- DisplayPort™ to HDMI™ Stereoscopic 3D Transport
- – Frame Sequential to Stacked Top-Bottom Conversion
- – Pass-trough of ther 3D Formats
- Audio Stream Handling
- – LPCM and compressed Audio encoding formats
- – Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
- HDCP Support
- – HDCP 1.3 to HDCP 1.4 Repeater function
- – HDCP 2.2 to HDCP 1.4 and 2.2 Repeater Fucntion
- HDMI™ transmitter
- – Compliant to HDMI™ specifications version 2.0b
- – 600MHz max TMDS character clock
- – High Daynamic Range (HDR) support both Static- and Dynamic HDR.
- – CEC Support – snooping, tunneling
- Max Video resolution and color depth on HDMI™ output
- – 4K 60Hz YCbCr 4:2:2, up to 12bpc
- – 4K 60Hz YCbCr 4:2:0, up to 12bpc
- – 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc
$44.99
CAC-1180 – The Club3D is a Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.Supports up to 4K UHD Resolutions. The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz. Color Formats: It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:2:2 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:2:2 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b.
